XYR Location Tables

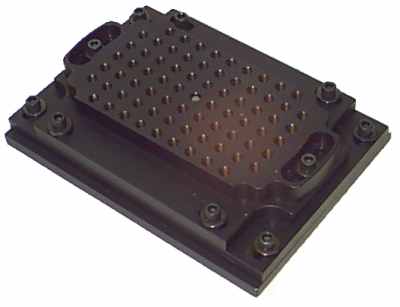

3.500 X 5.000 XYR
Part Number 101167


Price $750.00 ea.
7 In stock
More Information
Buy Now
View PDF

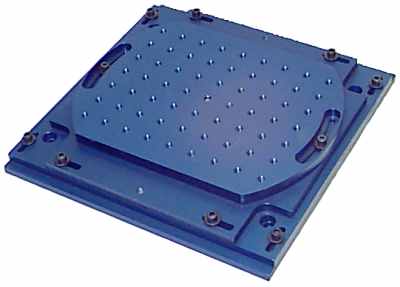

8.000 X 8.000 XYR
Part Number 101165


Price $850.00 ea.
13 In stock
More Information
Buy Now
View PDF

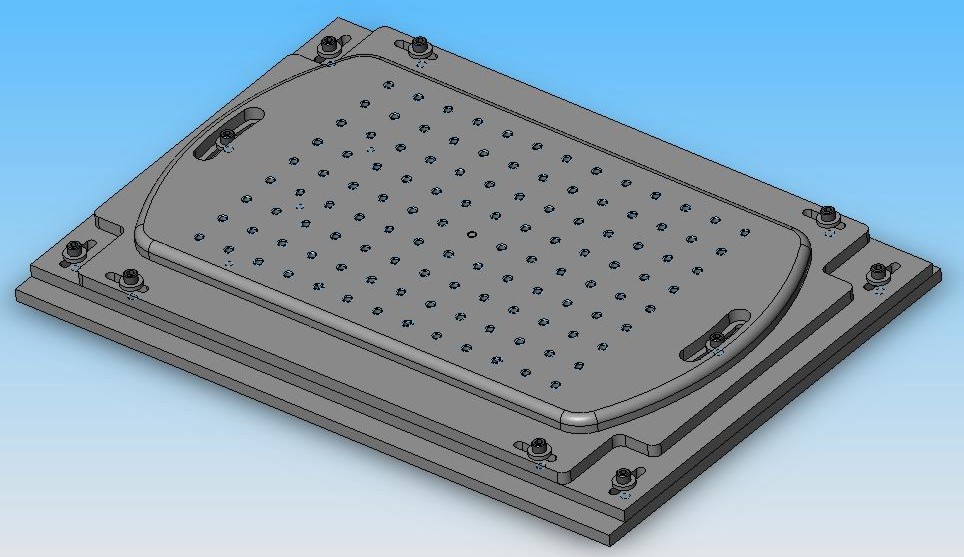

10.000 X 14.000 XYR Part Number 102601

Price $1,050.00 ea.
1 In stock
More Information
Buy Now

View PDF

  • FAST SET UP!
  • EASY TO INSTALL!
  • INCREASED QUALITY!
  • EASY ALIGNMENT!
Increase Your Production
The XYR Table is versatile and easy to use. Zero in on those difficult set up jobs accurately in a fraction of the time it takes now. The XYR Table is ideal for single color work and minimizes the set up time for multiple color work.
Easy to Change Over
The XYR Table has a top plate with a multiple hole pattern. This allows you to change tooling quickly and minimize the time for alignment under the center of the machine. If necessary, the XYR Table can easily be taken off the machine with the removal of four bolts.
Easy to Operate
The XYR Table has four bolts per X and Y axis, and only two bolts for the rotating axis. To move an axis, loosen the bolts and adjust as needed. After the XYR Table is properly aligned, tighten the bolts to secure the surfaces. A turn of the wrench will cut cost and machine down-time on every set up.
Medium XYR on Kensol/Franklin
Hot Stamp Machine
