10 X 14 XYR Locating System
 |
| Base Plate Size: |
14" Y by 20"X |
| Top Plate Size: |
10" Y by 14" X |
| X Movement: |
1" |
| Y Movement: |
1" |
| R Movement: |
15 Degree |
| Top Plate Pattern: |
1" X 1" |
| Mounting Pattern |
8" Y by 17" X |

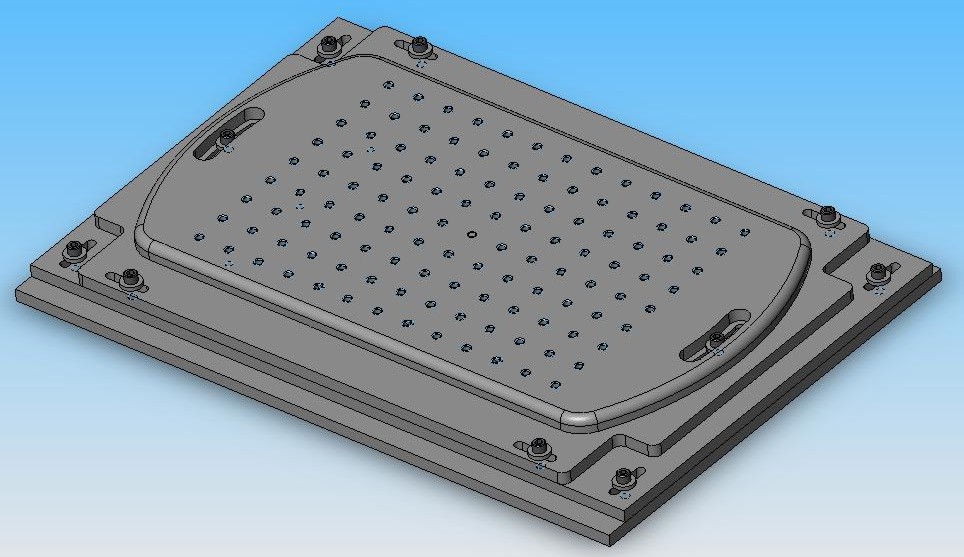

| Drawing |
|
|
Made to fit
Franklin Model 5100, 8200 and 8500
Kensol/Franklin Model 5100, 8200 and 8500
Custom Mounting patterns are available at no charge
|
|
|
|
