Hot Stamping Machine Control Box
Electrical Drawings |

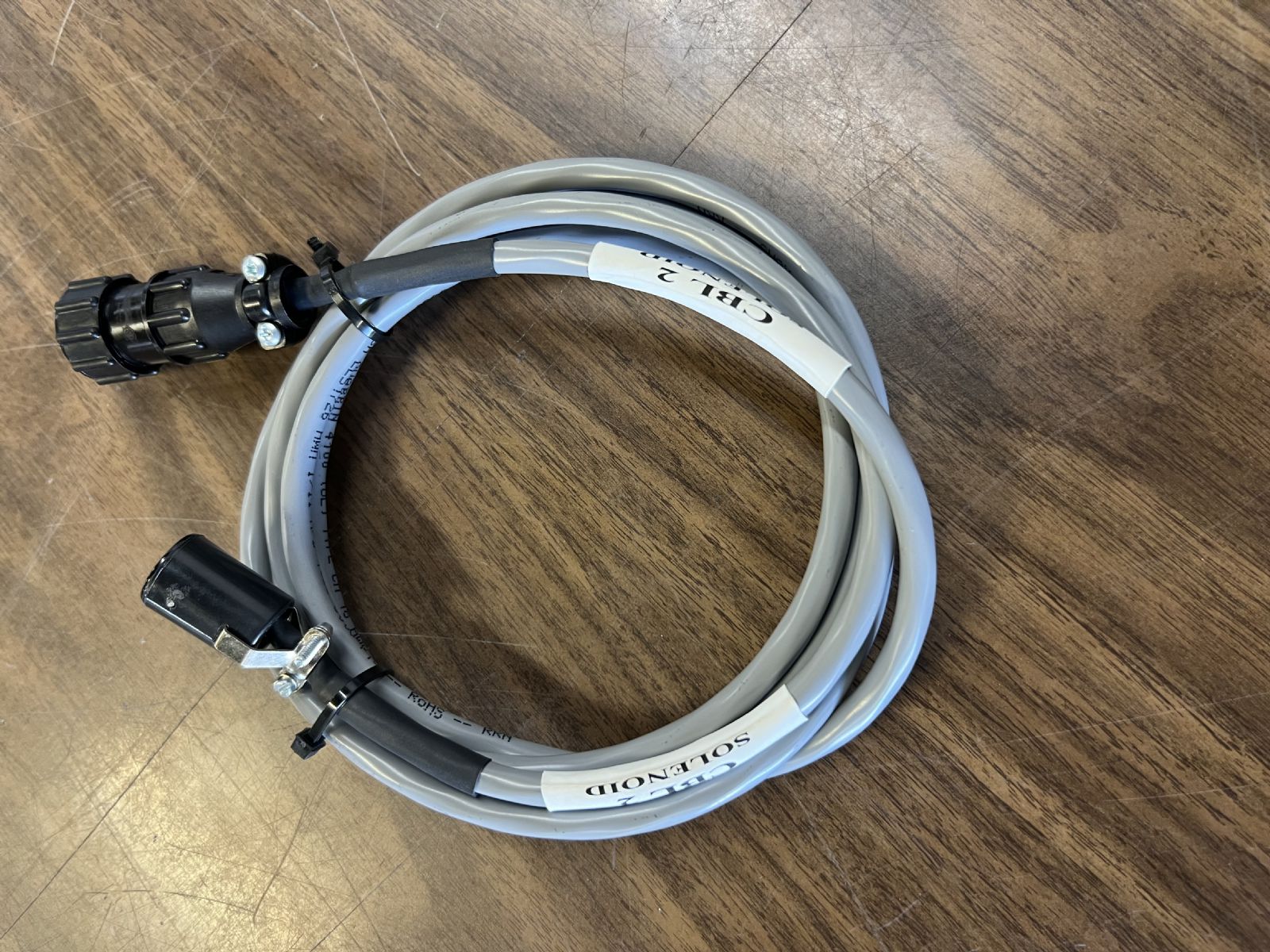

| Cable 2 Head Solenoid Cable |
| Price $160.00 Ea |
| 1. | Connects to control box P2 to 2 pin female Head Valve plug. |
| 2. | Supplies 120vac to Head Valve Cable2-2 |
|
| Part # | Description | Manu PN | PDF Files | Sales Price | | 104504 | Control Box Cable 2 SOLENOID | 19000_CABLE_2 | View PDF 1 | $160.00 |  |  |  |
|
| Part Number | Description | Qty | Units | Unit
Sales Price | Total
Sales Price | Manufacturer | Manu PN | VendorNo | PDF |
| 100124 | Pin, Male, Round | 3 | EA | $2.16 | $6.48 | AMP | 202236-3 | CIRCOMP | View PDF 1 | |  |  |
| 100136 | Plug, 2pin, Female, Round | 1 | EA | $3.98 | $3.98 | Cinch | S-302H-CCTK | CIRCOMP | View PDF 1 | |  |
| 100370 | Plug, 4pin, Strain Relief | 1 | EA | $3.18 | $3.18 | AMP | 1-206062-6 | CIRCOMP | View PDF 1 | |  |
| 100388 | Plug, 4pin, Male | 1 | EA | $2.75 | $2.75 | AMP | 206429-1 | CIRCOMP | View PDF 1 | |  |
| Total Parts Price | | | | $15.00 | $15.00 | | | $160.00 | |
| Part List Price | | | | | $33.64 | | | | |
|
|
