Hot Stamping Machine Control Box
Omron Temperature Controller Replace RTD
Page 3
Previous Page  Next Page

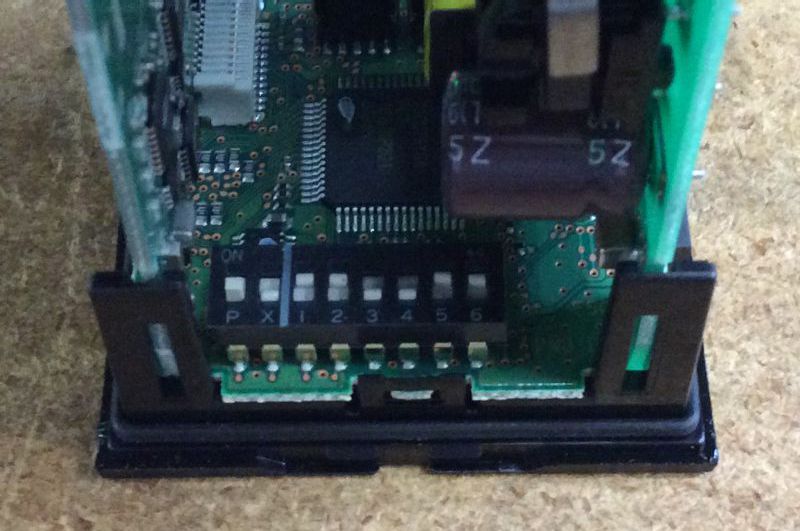

Dip_Switch
Use a small screw driver to set the dip switches on the new controller as shown.
Dip Switch Setup
RTD Probe J ThermocoupleK Thermocouple
P.OFF
X.OFF
1.ON
2.ON
3.OFF
4.OFF
5.ON
6.ON
P.OFF
X.OFF
1.ON
2.ON
3.OFF
4.OFF
5.OFF
6.ON
P.OFF
X.OFF
1.ON
2.ON
3.OFF
4.OFF
5.OFF
6.ON
AFM Control Boxes are wired for RTD Probes.
Changing to a J or K thermocouple will require a change in the Box wiring.
Click here to see Drawing
Omron E5CSV Manual
Release Latch
Picture10001		 Remove Controller
Picture10002		 Set Dip Switches
Picture10003		 Set Selector Switches
