AFM Engineering> Hot Stamping> Foil Feeds> 10"X 15" No Drive
Hot Stamping Machine
Foil Feed Systems 10"X15"

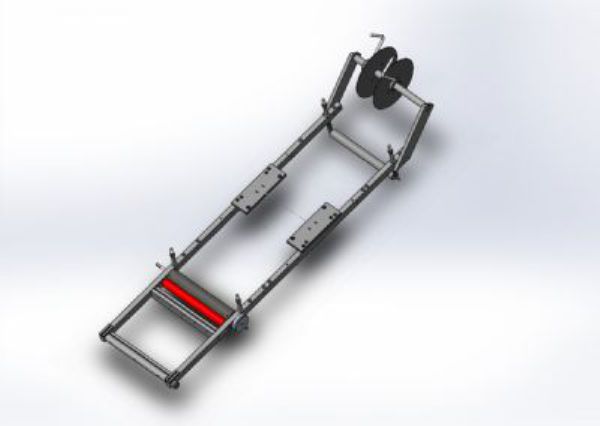

Foil Feed, 10"X15" No Drive
AFM Part Number 104326
Drawing Number 155300
View PDF
QtyDescriptionDrawing NumberAFM Part#Picture(s)Drawing(s)EDrawing(s)AssemblySpare

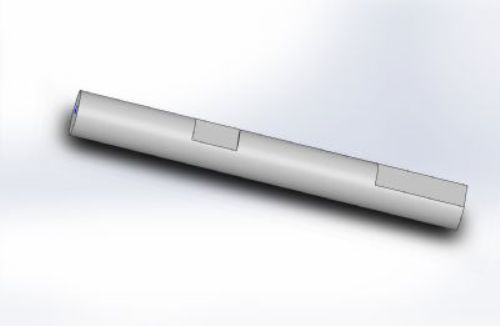

1Foil Feed, Knurled roller pin (drive side) Motor Drive15000-003 102953View PDF
1Foil Feed, Knurled roller pin (wheel side) 15000-004 102954View PDF
1Foil Feed, Large Pulley 15000-002 100249View PDFYES

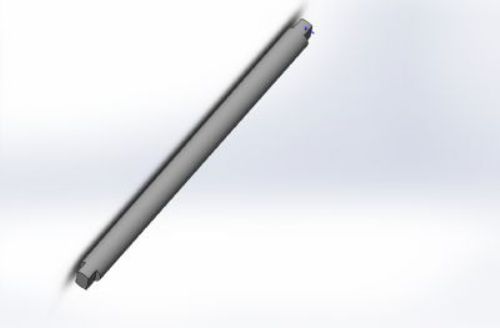

1Foil Feed, Mandrel 10" x 15" 15350-003 100510View PDF

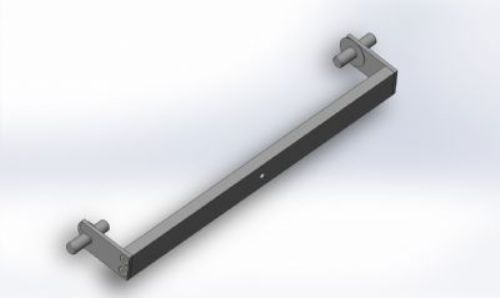

2Foil Feed, Mandrel support bar 10 x 1515350-011100460View PDF
2Foil Feed, Rail Franklin, 48 Inch 15710-003 103577View PDFYES
1Foil Feed, Roller, Metal, Knurled, 10"X15" Heater Head 15310-003 103144View PDF

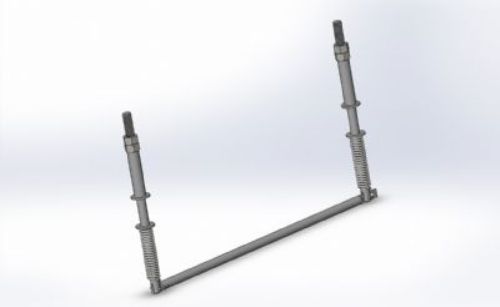

1Foil Feed, Roller, Pressure Assembly, 10X15 15530-000 103490View PDFYES
1Foil Feed, Roller, Rubber, 10"X15" Heater Head 15323-000 102787View PDFYES

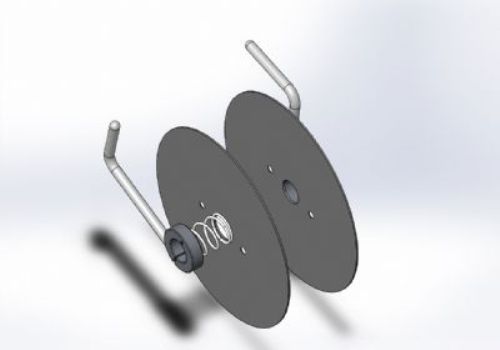

1Foil Feed, Supply Flange Assembly 8" 15903-000 103508View PDFYES
2Foil Feed, Take Up Keeper 15000-001 100428View PDF
1Foil Feed, Takeup Assembly 10X15 15430-000 103277View PDFYESYES

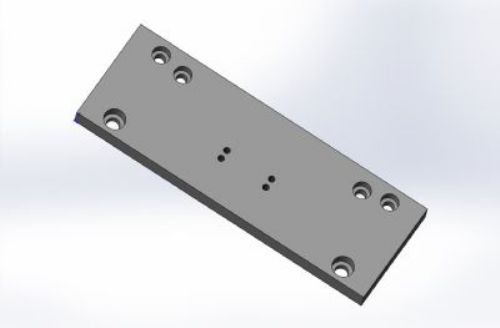

2Mounting Bracket 10x1515530-003104329View PDF
1Pressure Assembly Fixed Bar 10x1515530-002104328View PDFYES

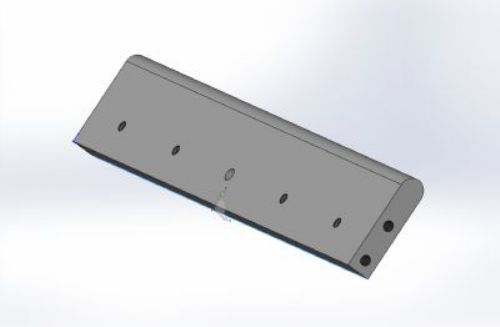

2Stripper Bar Assembly 10X15, 8 Long15931-000103583View PDFYES
